Unloaded U-Cup

ASYMMETRICAL

These asymmetrical seals with a U shape at the hydraulic pressure interface are excellent for high pressure performance. They’re frequently used in mobile hydraulic, agricultural and general industrial applications.

Features: Energized seal with a back-beveled lip, bump heel and film breaking capabilities.

Materials: Urethane or Hytrel®

Max Pressure: 6,000 psi

Temperature range: -50°F to +250°F

Max Velocity: 3.2 ft/sec



SYMMETRICAL

Symmetrical

These pressure energized U-cups offer excellent performance in low pressure environments. More

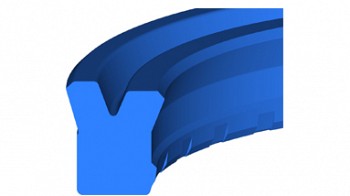

ASYMMETRICAL

Asymmetrical

Pressure energized U-cups offer excellent service in high pressure environments. More
