Loaded U-Cup

LOADED U-CUP

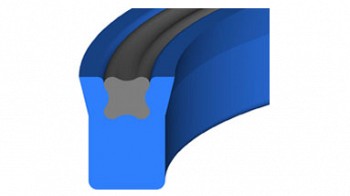

Loaded U-cups’ name comes from their U shape and the elastomeric energizer. The seal results from a flared, flexible lip contacting the rod or cylinder wall. These U-cups allow for effective low pressure seals, both on the outside and inside diameters. Loaded U-cup seals frequently are used with piston and rod seals because they require a small gland space. Typically, they are specified for low pressure, low speed applications. Dynamic contact surfaces require a 8 – 16 RMS finish.

SQUARE B LOADED U-CUP

Square B Loaded U-Cup

A low pressure energizer and urethane surface provide a long performance life. More

BACK-BEVELED LOADED U-CUP

Back-Beveled Loaded U-Cup

These U-Cups are taller than the square B and increase deformation resistance. More
