Loaded U-Cup

SQUARE B LOADED U-CUP

These Square B Loaded U-Cups feature a urethane surface, low pressure energizer, back-beveled lip and film breaking capabilities. They provide better low pressure performance and a longer seal life. Square B Loaded U-Cups are frequently used in mobile hydraulic, agricultural and general industrial, medium duty cycle applications.

Materials: Urethane or Hytrel® shell with Nitrile or Viton™ expander

Max Pressure: 6,000 psi

Temperature range: -50°F to +250°F

Max Velocity: 3.2 ft/sec

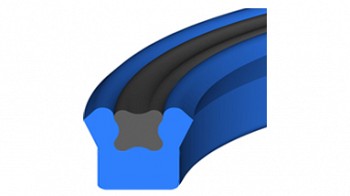

SQUARE B LOADED U-CUP

Square B Loaded U-Cup

A low pressure energizer and urethane surface provide a long performance life. More

BACK-BEVELED LOADED U-CUP

Back-Beveled Loaded U-Cup

These U-Cups are taller than the square B and increase deformation resistance. More
