Premium Loaded U-Cup

PREMIUM LOADED U-CUP WITH ANTI-EXTRUSION RING

These heavy-duty rod seals with improved extrusion resistance at higher pressures and larger clearance gaps allow applications requiring low friction, and service at extreme temperatures. The elastomeric lip improves sealability and the anti-extrusion ring improves toughness. They’re commonly used with high pressure, mobile hydraulic applications; large extrusion gaps; and in high duty cycle and pressure spike applications.

Materials: Urethane or Hytrel® shell with Nitrile, Viton™, and a low temperature Nitrile top seal (Low temperature materials are available)

Max Pressure: 10,000 psi

Temperature range: -50°F to +250°F

Max Velocity: 3.2 ft/sec


PREMIUM LOADED U-CUP

Premium Loaded U-Cup

Premium loaded U-cups are ideal for functions requiring low friction at extreme temperatures. More

PREMIUM LOADED DOUBLE LIP U-CUP

Premium Loaded Double Lip U-Cup

For greater extrusion resistance under higher pressures and larger clearance gaps. More

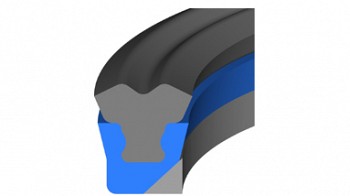

PREMIUM LOADED U-CUP WITH ANTI-EXTRUSION RING

Premium Loaded U-Cup with Anti-Extrusion Ring

For low friction, extreme temperature applications at high pressures. More
